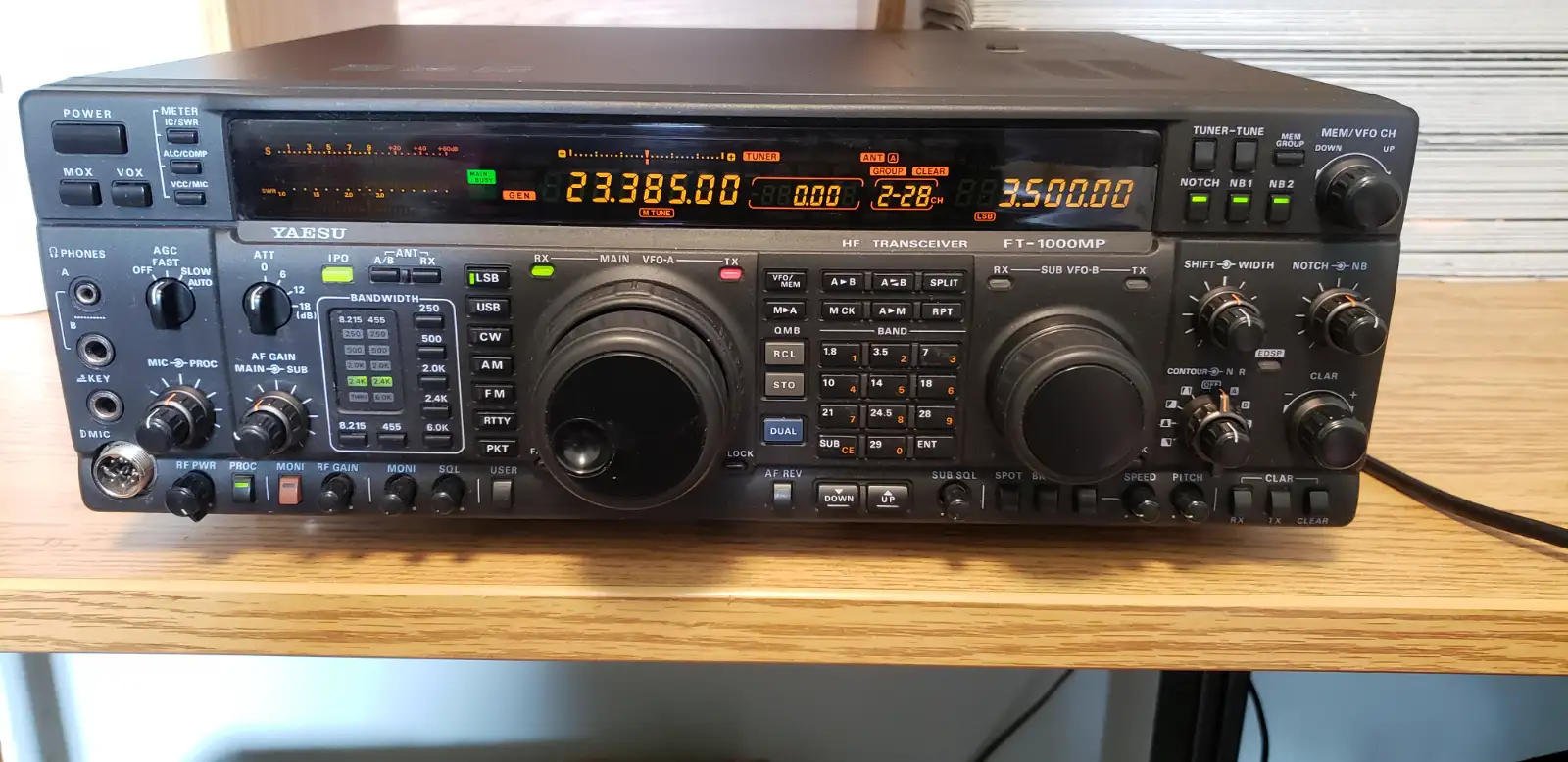

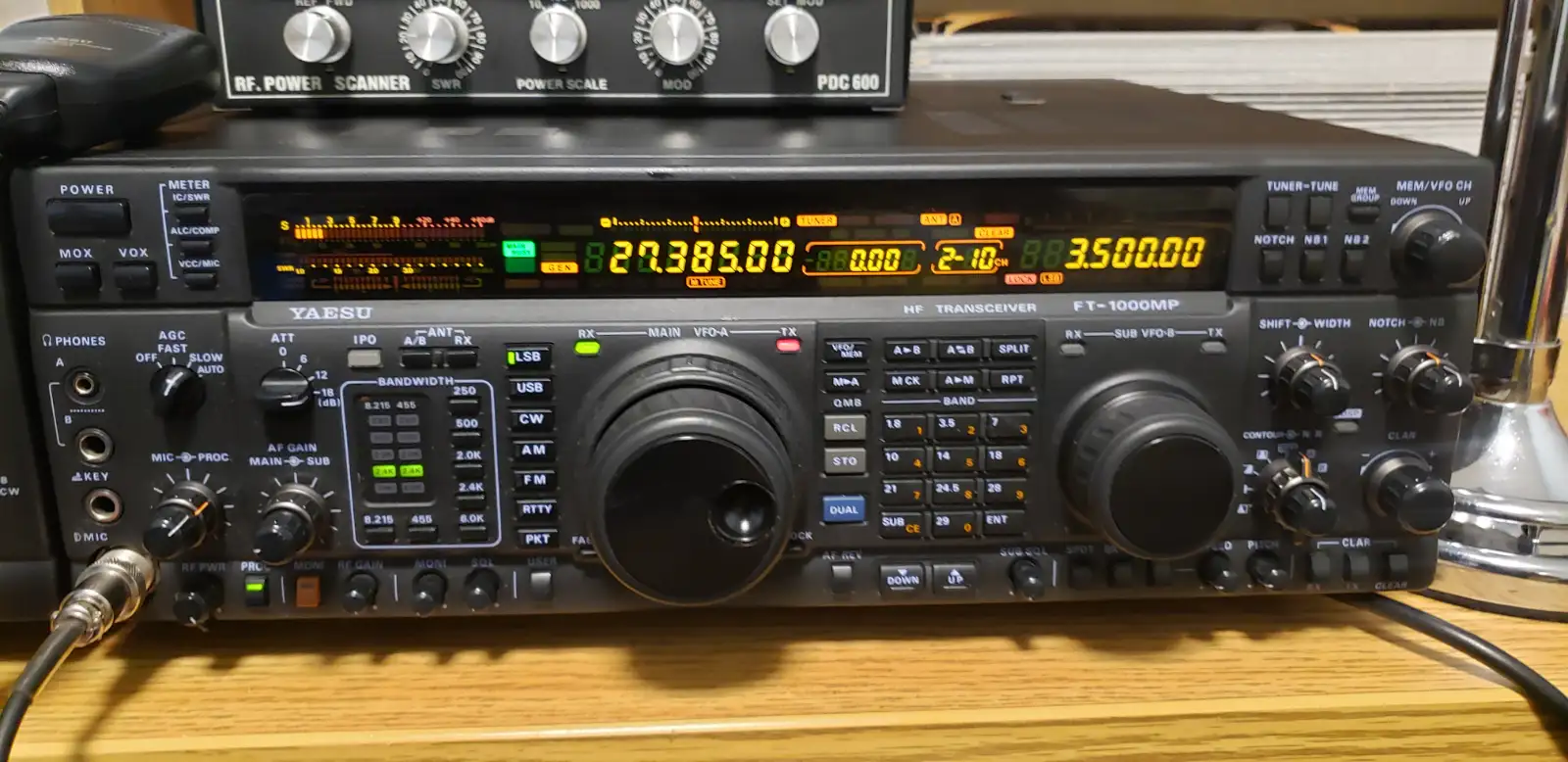

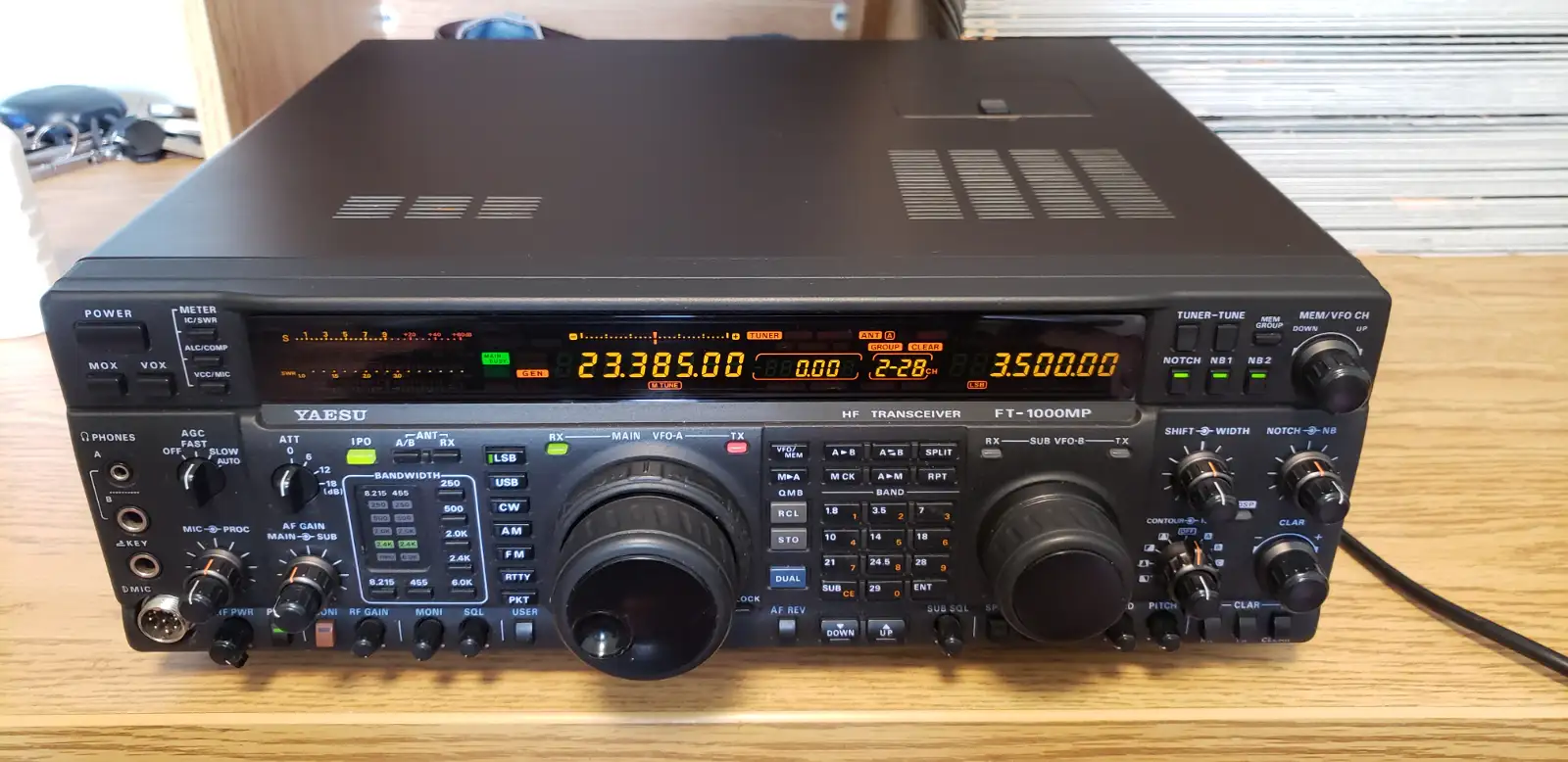

Yaesu FT-1000 Amateur Radio Transceiver

Receive frequency coverage

100 kHz–30 MHz Reference

Modes

LSB/USB (J3E), CW (A1A), FSK (J1D/J2D), AM (A3E), FM (F3E) Reference

RF output power

Adjustable up to 200 W; 50 W AM carrier Reference

Power requirement

100, 110, 117, 200, 220, or 234 VAC, 50/60 Hz Reference

Current consumption

Approximately 95 VA receiving; 1050 VA transmitting at 200 W Reference

Frequency stability

Less than ±2 ppm from 0 to +50 °C; with TCXO-1, less than ±0.5 ppm from −10 to +60 °C Reference

Frequency resolution

10 Hz for J3E, A1A, and J1D; 100 Hz for A3E, F3E, and J2D Reference

Intermediate frequency

73.62 MHz, 8.215 MHz, 455 kHz, and 100 kHz Reference

Dimensions

420 × 150 × 375 mm (W × H × D) Reference

Weight

Approximately 25.5 kg (51 lb) Reference

Antenna impedance

16.5–150 Ω; 50 Ω nominal Reference

Specifications may vary by revision or market. Use linked manufacturer references when available and confirm critical details before purchase.
