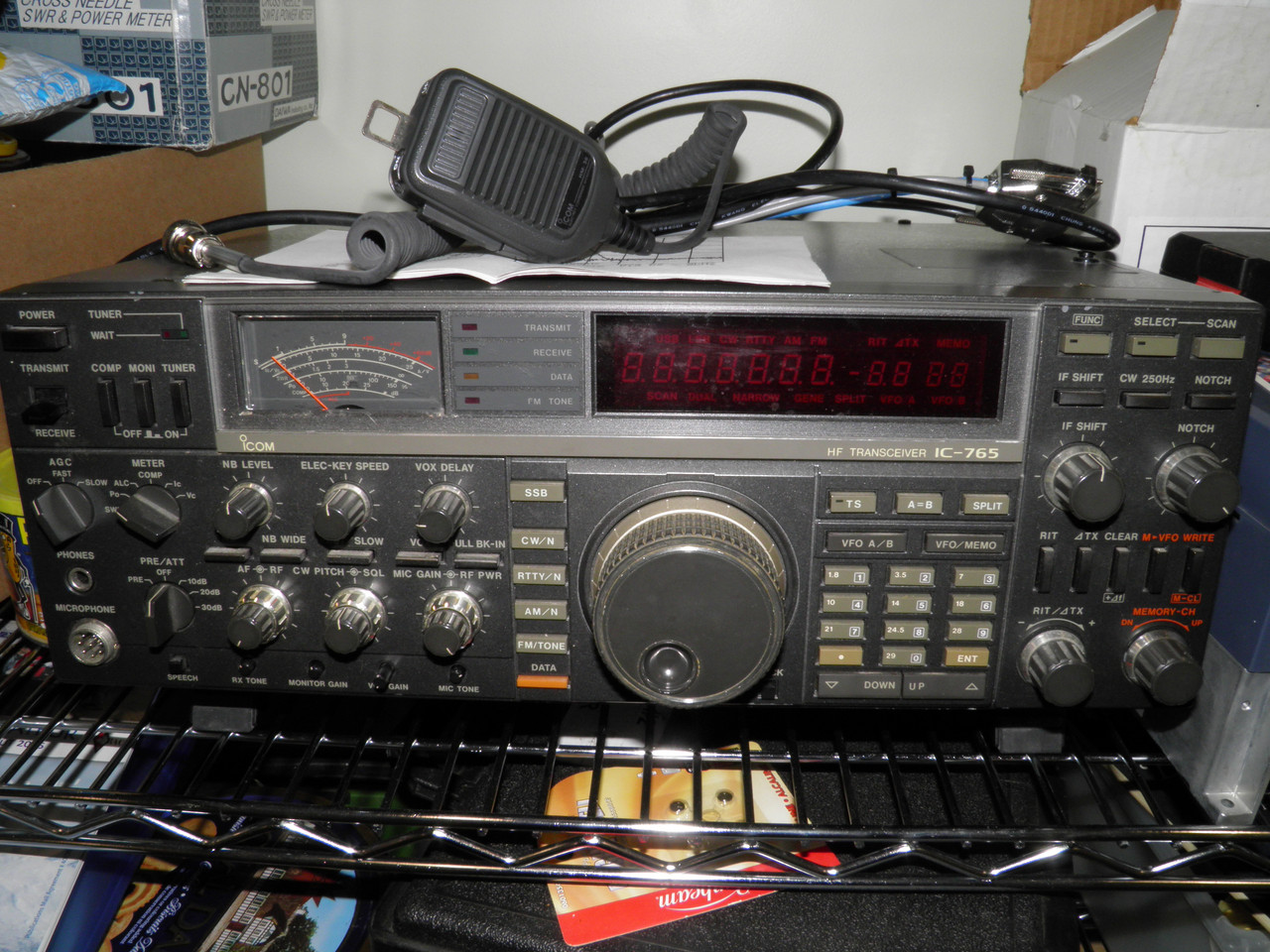

Icom IC-765

Receive frequency coverage

0.1–30.0 MHz Reference

Modes

LSB, USB, CW, AM, FM, RTTY Reference

RF output power

SSB: 100 W PEP; CW/RTTY/FM: 100 W; AM: 40 W Reference

Power requirement

U.S.A. version: 100–120 V AC; Australia, Europe, France versions: 220–240 V AC Reference

Operating temperature

−10°C to +60°C (+14°F to +140°F) Reference

Dimensions

424 (W) × 150 (H) × 390 (D) mm; 16.7 (W) × 5.9 (H) × 15.4 (D) in, projections not included Reference

Weight

17.5 kg (38.6 lb) Reference

Antenna impedance

50 Ω with tuner switch OFF; 16.5–150 Ω with tuner switch ON Reference

Audio output power

More than 2.6 W at 10% distortion with an 8 Ω load Reference

Frequency stability

Less than ±200 Hz under normal conditions; less than ±30 Hz after every hour; less than ±350 Hz at 0°C to +50°C; less than ±100 Hz with optional CR-282 installed Reference

Intermediate frequency

SSB/CW/RTTY/AM: 69.0115 MHz, 9.0115 MHz, 455 kHz, 9.0115 MHz; FM: 69.0100 MHz, 9.0100 MHz, 455 kHz Reference

Specifications may vary by revision or market. Use linked manufacturer references when available and confirm critical details before purchase.
