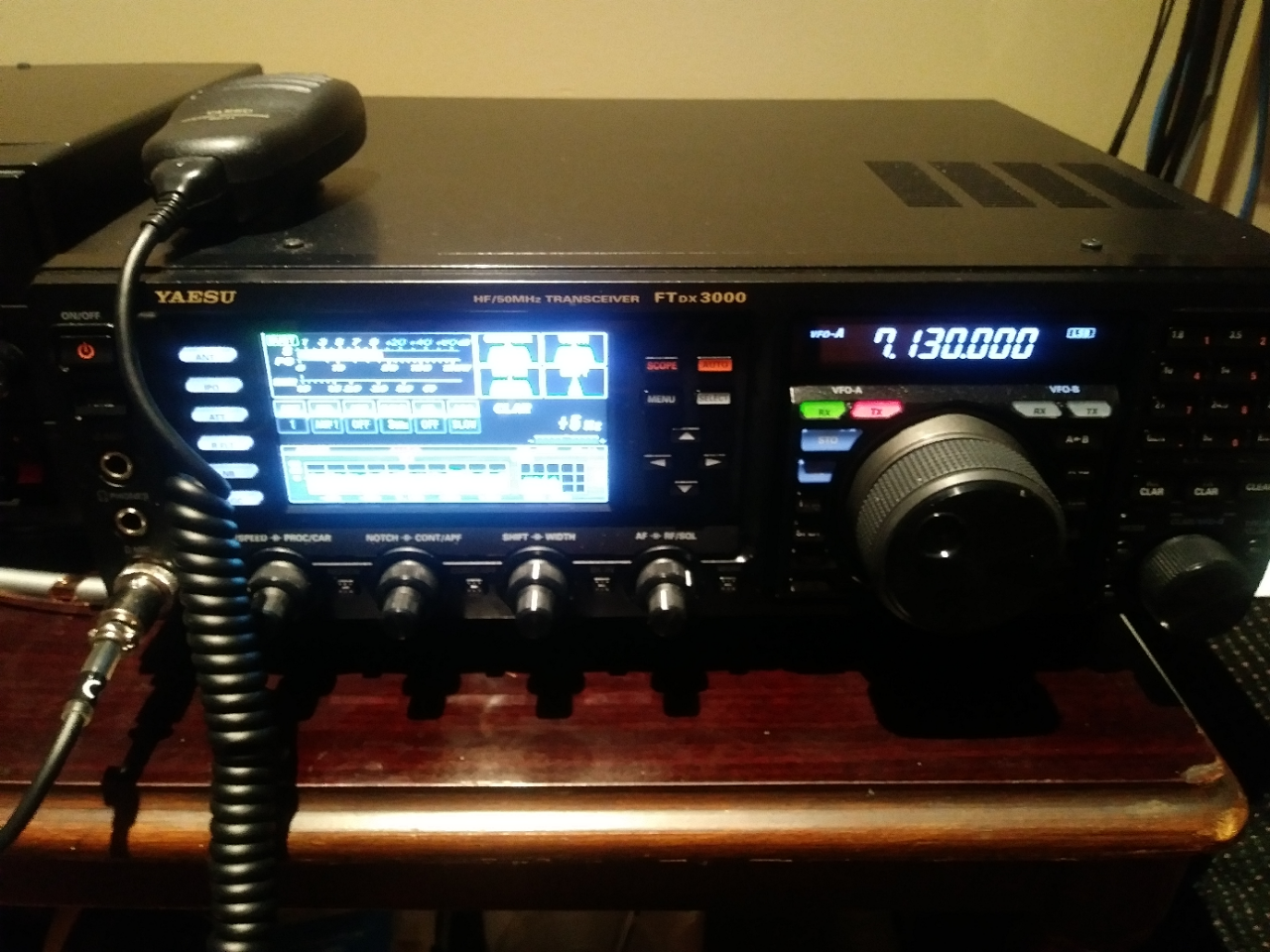

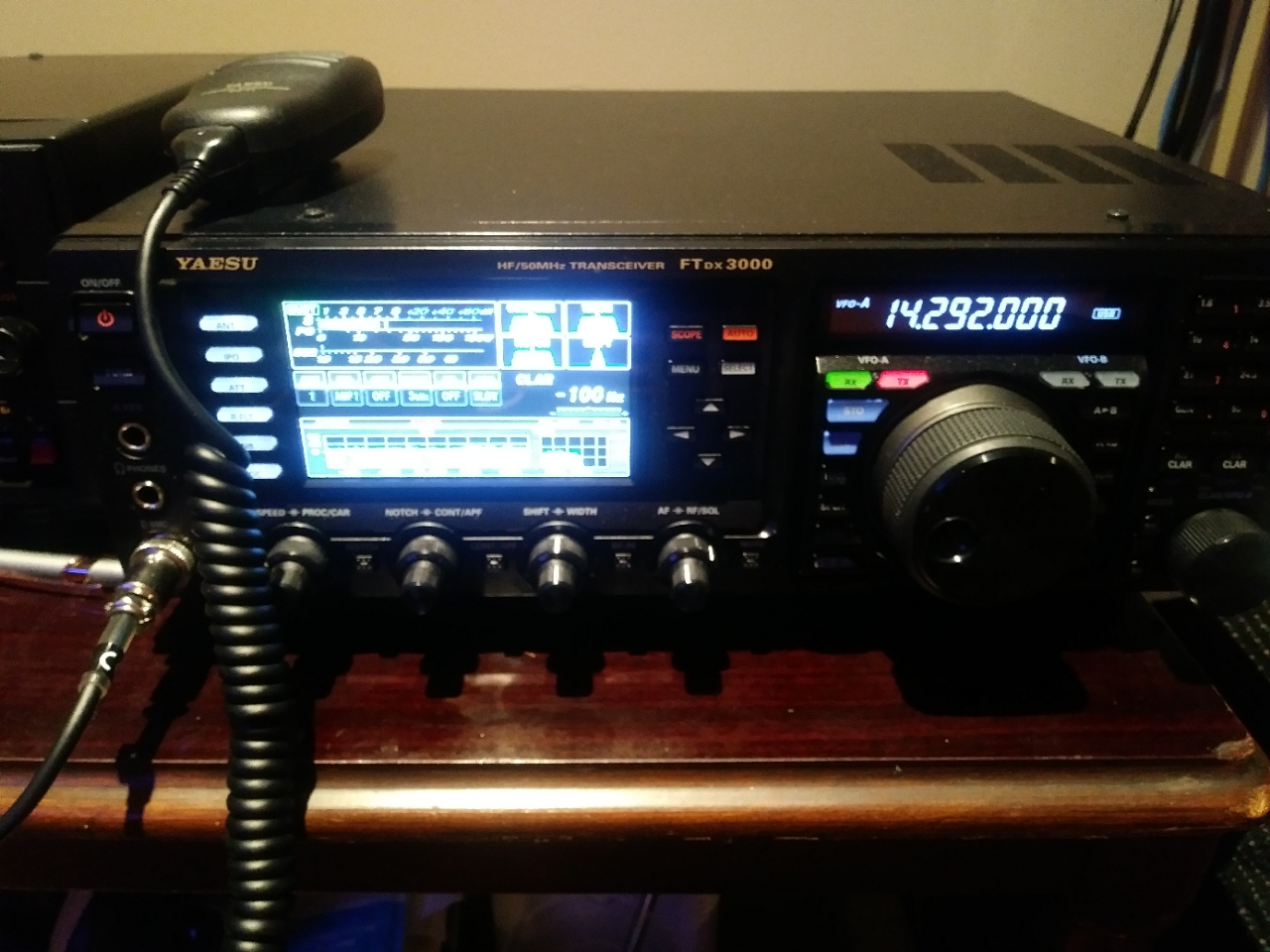

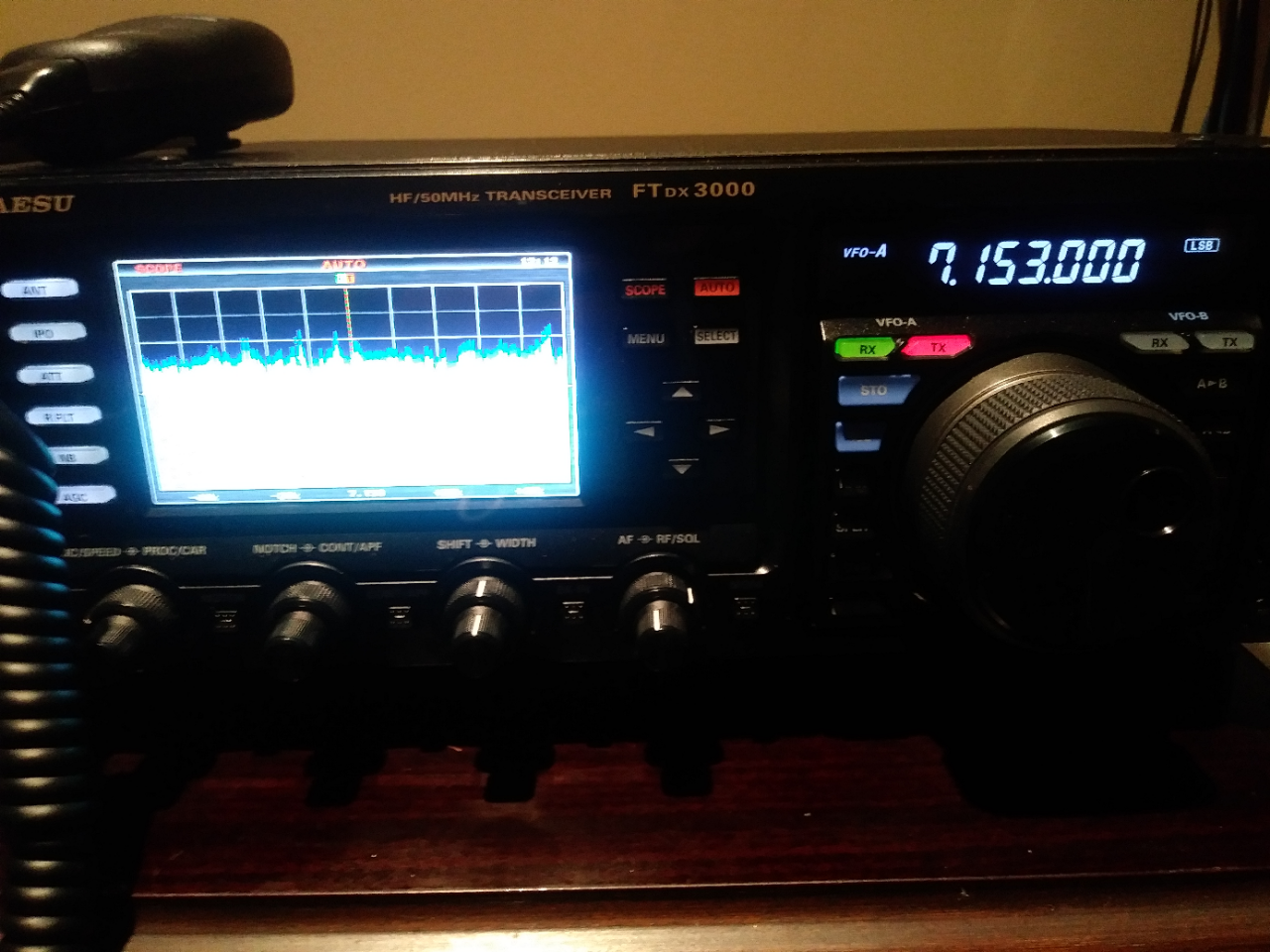

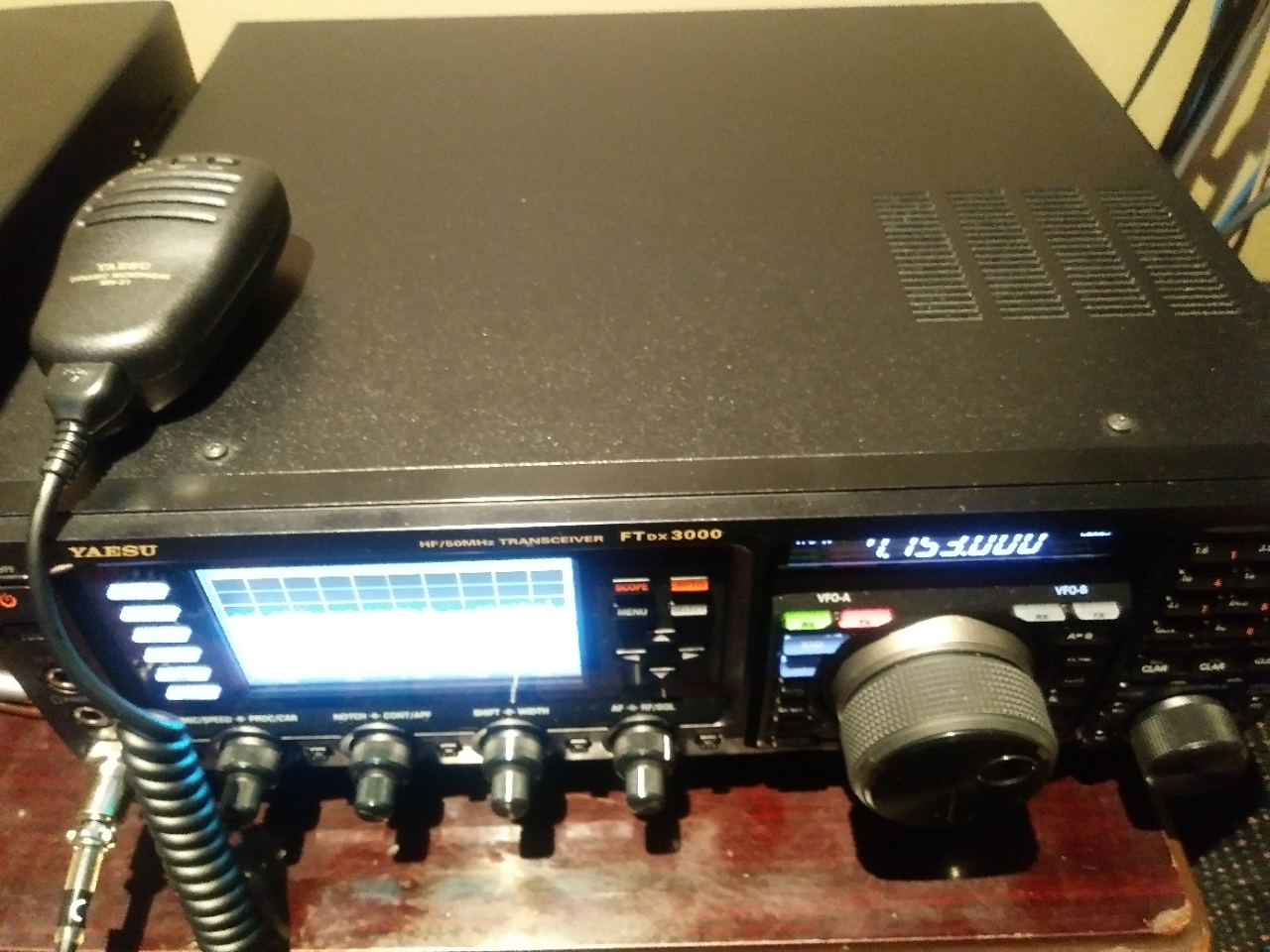

Yaesu FTDX3000D Ham Radio

Receive frequency coverage

30.00 kHz–56.000000 MHz (operating range); 1.800000–54.000000 MHz amateur bands (guaranteed range), excluding intermediate frequencies Reference

Transmit frequency coverage

1.8–54 MHz amateur bands Reference

Bands

HF/50 MHz; 160 through 6 meters Reference

Modes

A1A (CW), A3E (AM), J3E (LSB/USB), F3E (FM), F1B (RTTY), G1B (PSK) Reference

RF output power

FT DX 3000D: 100 W CW/SSB/FM; 25 W AM Reference

Audio output power

2.5 W or greater at 4 Ω, 10% THD Reference

Power requirement

DC 13.8 V ±10%; negative ground Reference

Current consumption

Approximately 1.8 A receiving with no signal; approximately 2.1 A receiving signal output; approximately 23 A transmitting at 100 W (FT DX 3000D) Reference

Frequency stability

±0.5 ppm (−10°C to +50°C, one minute after power-on) Reference

Frequency resolution

1/5/10 Hz (CW/SSB/AM); 100 Hz (FM) Reference

Intermediate frequency

1st IF: 9.000 MHz; 2nd IF: 30 kHz (AM/FM: 24 kHz) Reference

Specifications may vary by revision or market. Use linked manufacturer references when available and confirm critical details before purchase.
