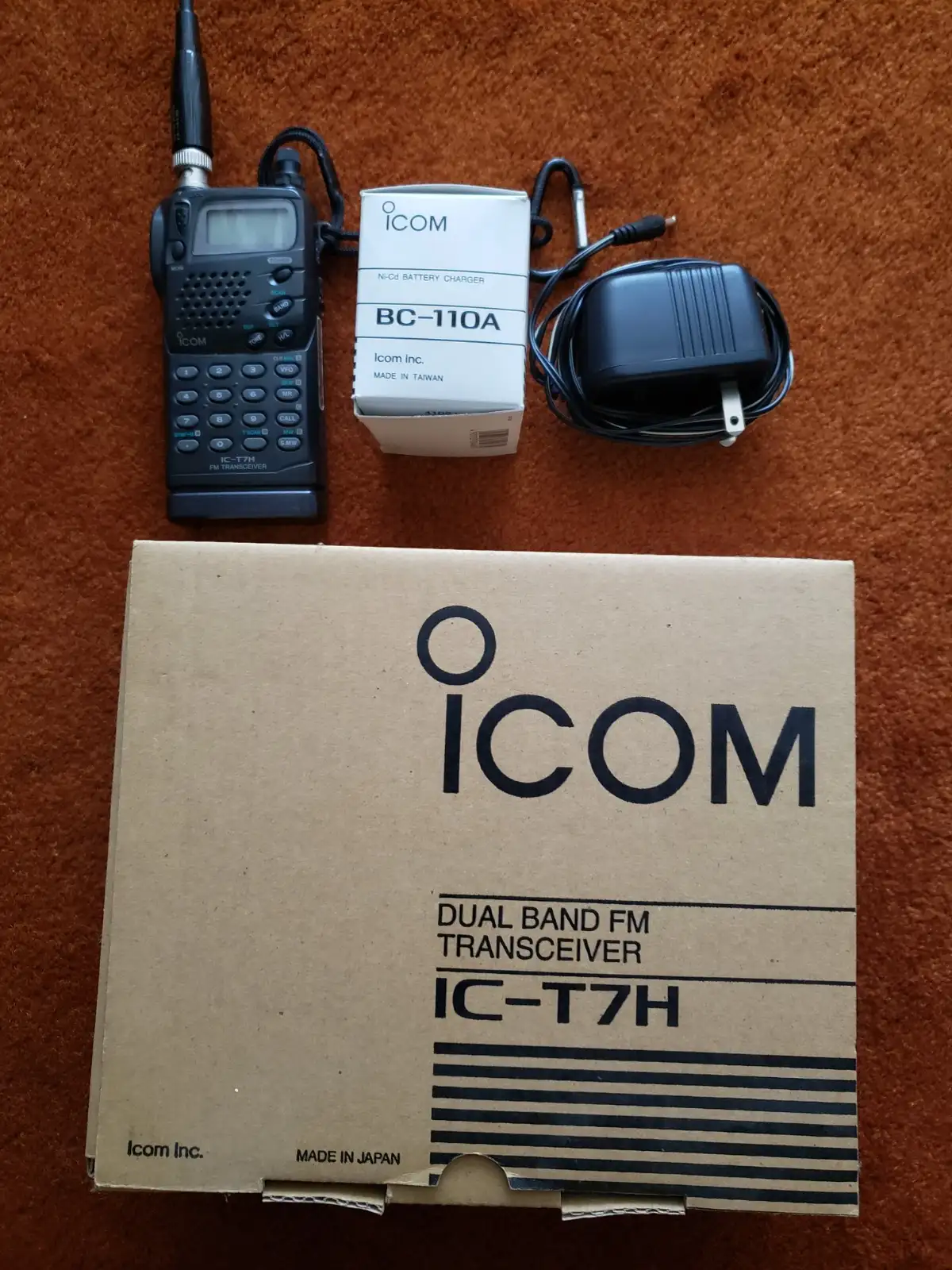

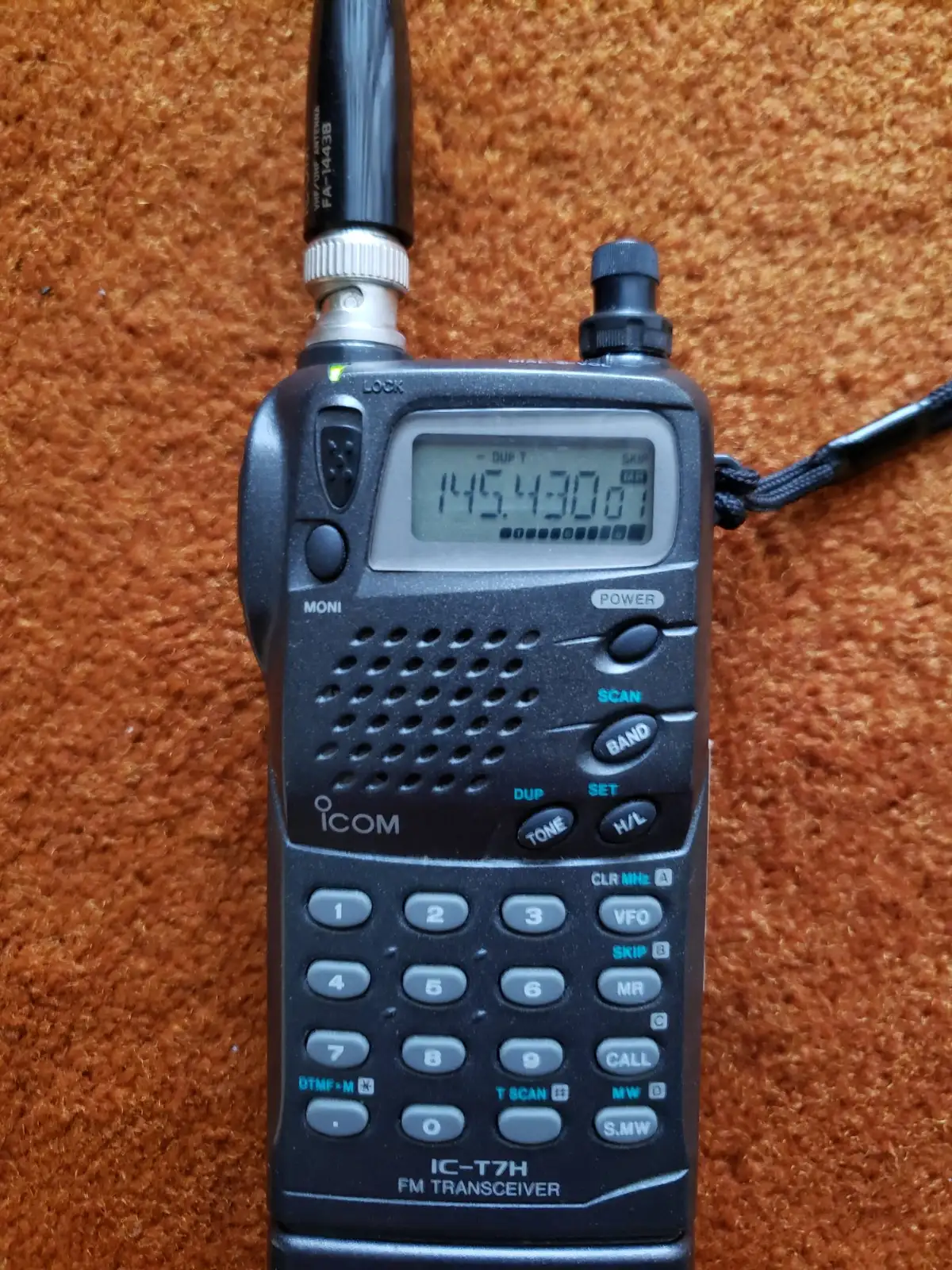

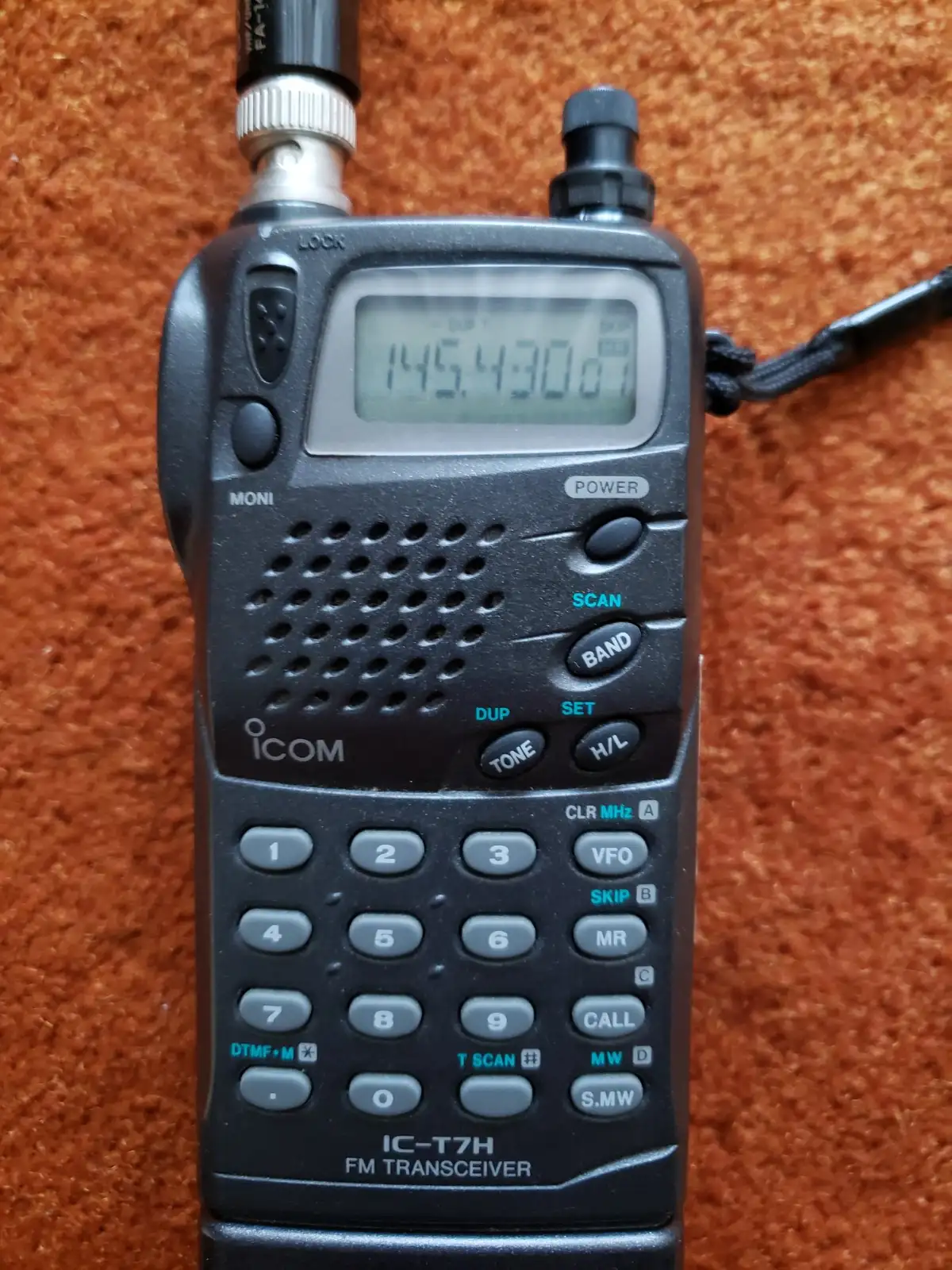

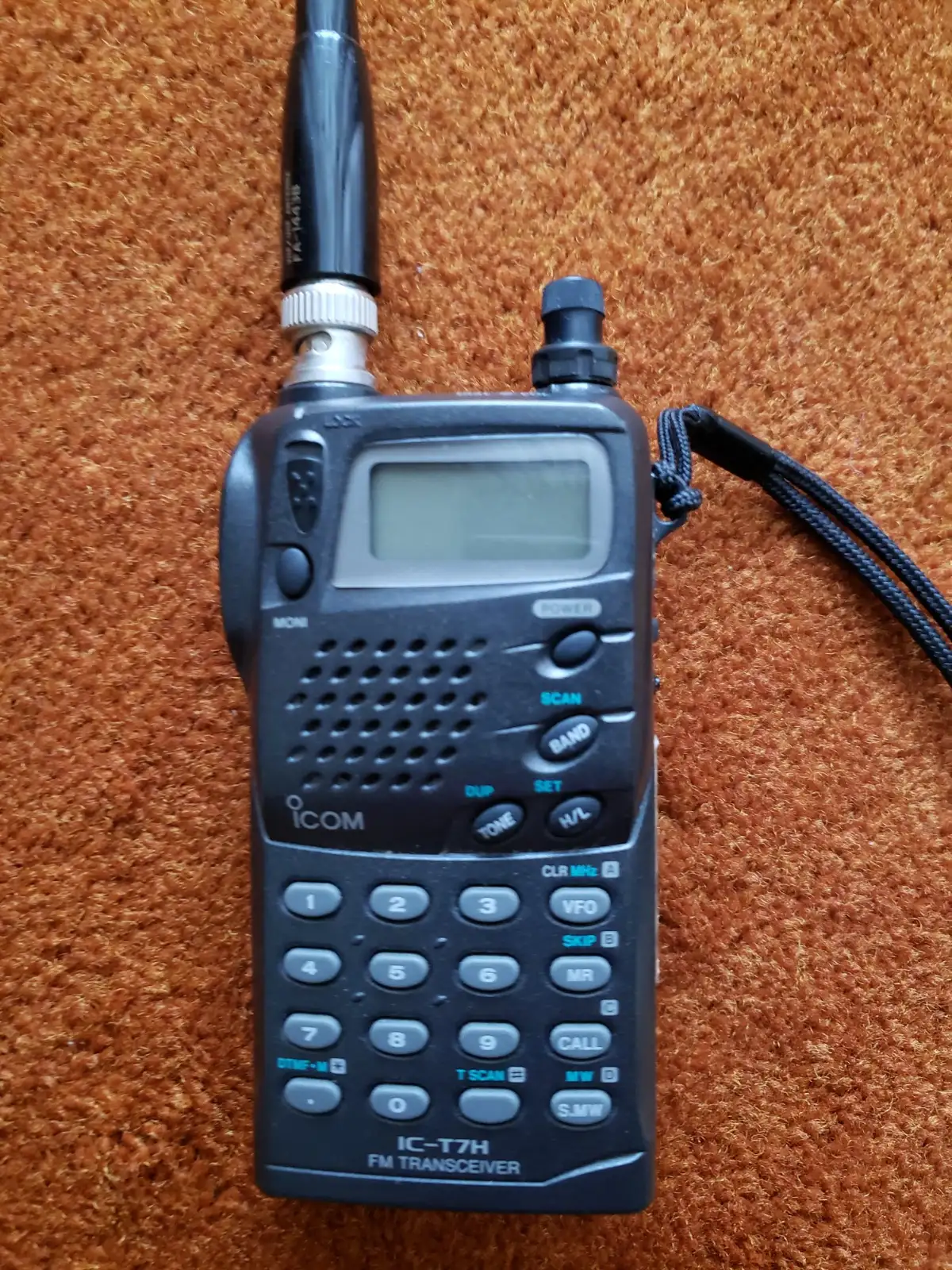

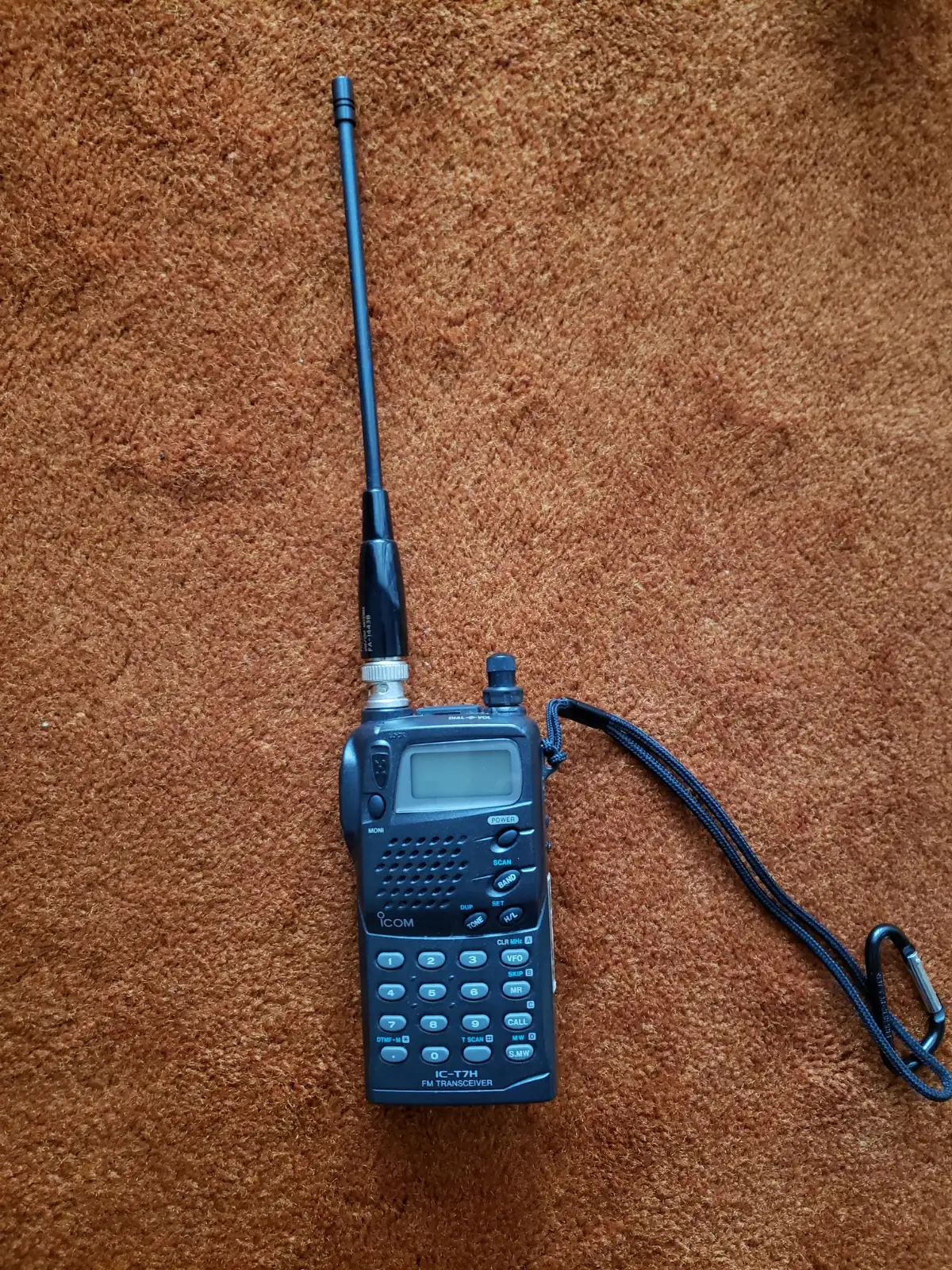

ICOM IC-T7H Dual Band FM Ham Radio Transceiver

Bands

VHF and UHF Reference

Modes

FM (F3E) Reference

RF output power

6 W, 0.5 W selectable Reference

Audio output power

More than 500 mW at 10% distortion with an 8 Ω load Reference

Power requirement

External DC power: 4.5 to 16 V DC, negative ground Reference

Current consumption

Transmit high: 1.6 A (VHF), 1.6 A (UHF); transmit low: 600 mA (VHF), 700 mA (UHF); receive rated audio: 190 mA; power saved: 16 mA average Reference

Frequency stability

±5 ppm from 0°C to +50°C (+32°F to +122°F) Reference

Frequency resolution

5, 10, 12.5, 15, 20, 25, 30 or 50 kHz tuning steps Reference

Intermediate frequency

1st: 45.15 MHz; 2nd: 450 kHz Reference

Operating temperature

−10°C to +60°C (+14°F to +140°F) Reference

Dimensions

57(W) × 122(H) × 29(D) mm; projections not included Reference

Specifications may vary by revision or market. Use linked manufacturer references when available and confirm critical details before purchase.
