Vintage EF Johnson 8640 900MHz Mobile Radio Kit
Concord, ON L4K 1P6
1 / 3
EQUIPMENT REFERENCE
Curated equipment dataSpecs
- Receive frequency coverage
- 935-941 MHz Reference
- Transmit frequency coverage
- 896-902 MHz Reference
- Modes
- LTR (trunked) or conventional (non-trunked) simplex Reference
- RF output power
- 15 W Reference
- Audio output power
- 5 W (3.0 ohm load) Reference
- Power requirement
- 13.6 V negative ground Reference
- Frequency stability
- ±1.5 PPM from −22 to +140 °F (−30 to +60 °C) Reference
- Frequency resolution
- 12.5 kHz channel increment Reference
- Dimensions
- 2.0 in high × 6.67 in wide × 9.87 in deep (3.1 cm × 16.8 cm × 24.9 cm) Reference
- Weight
- 4.0 lb (1.82 kg) Reference
- Antenna impedance
- 50 ohms Reference
- Antenna connector
- Type N connector Reference
Specifications may vary by revision or market. Use linked manufacturer references when available and confirm critical details before purchase.
About this listing

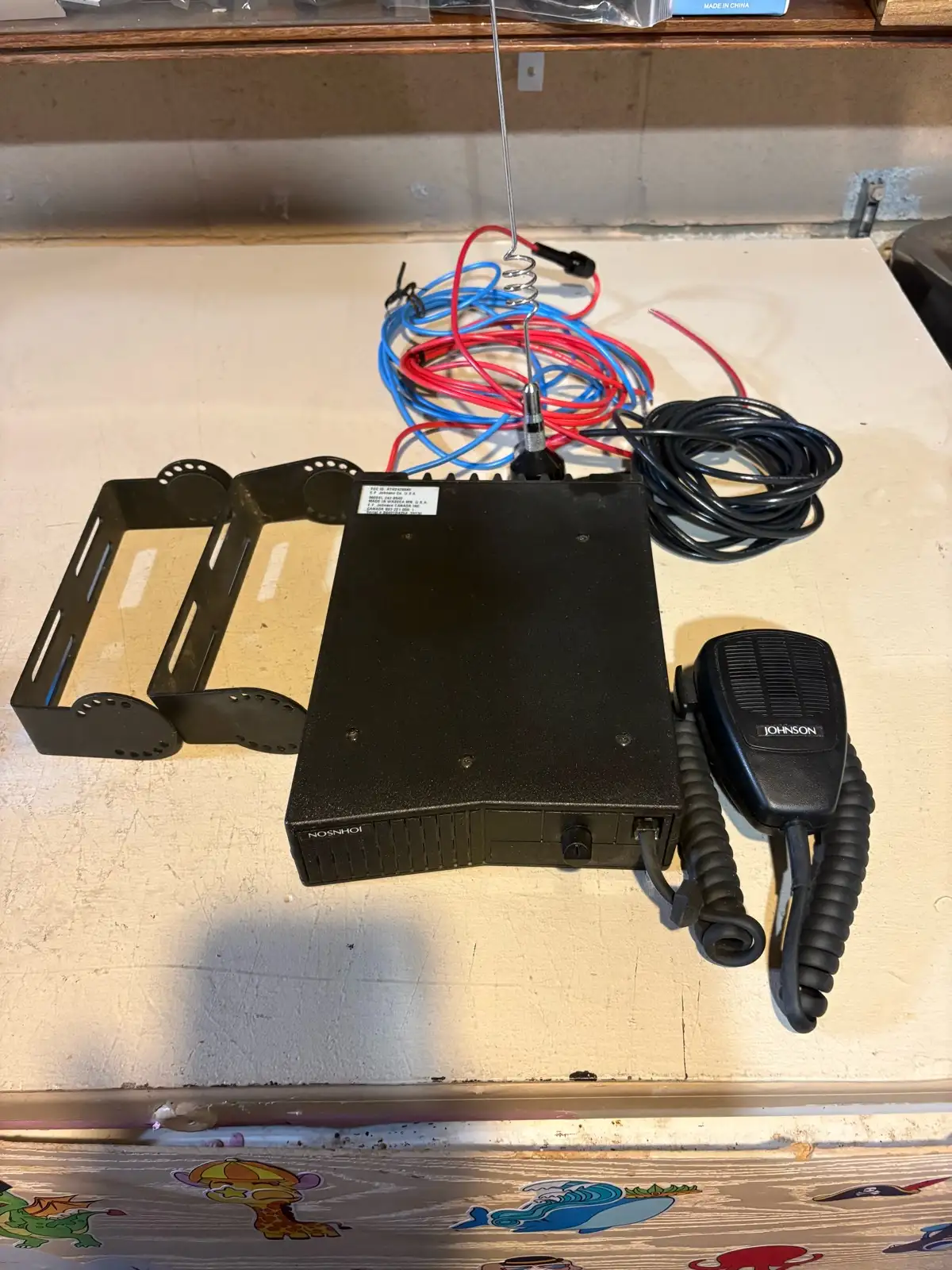

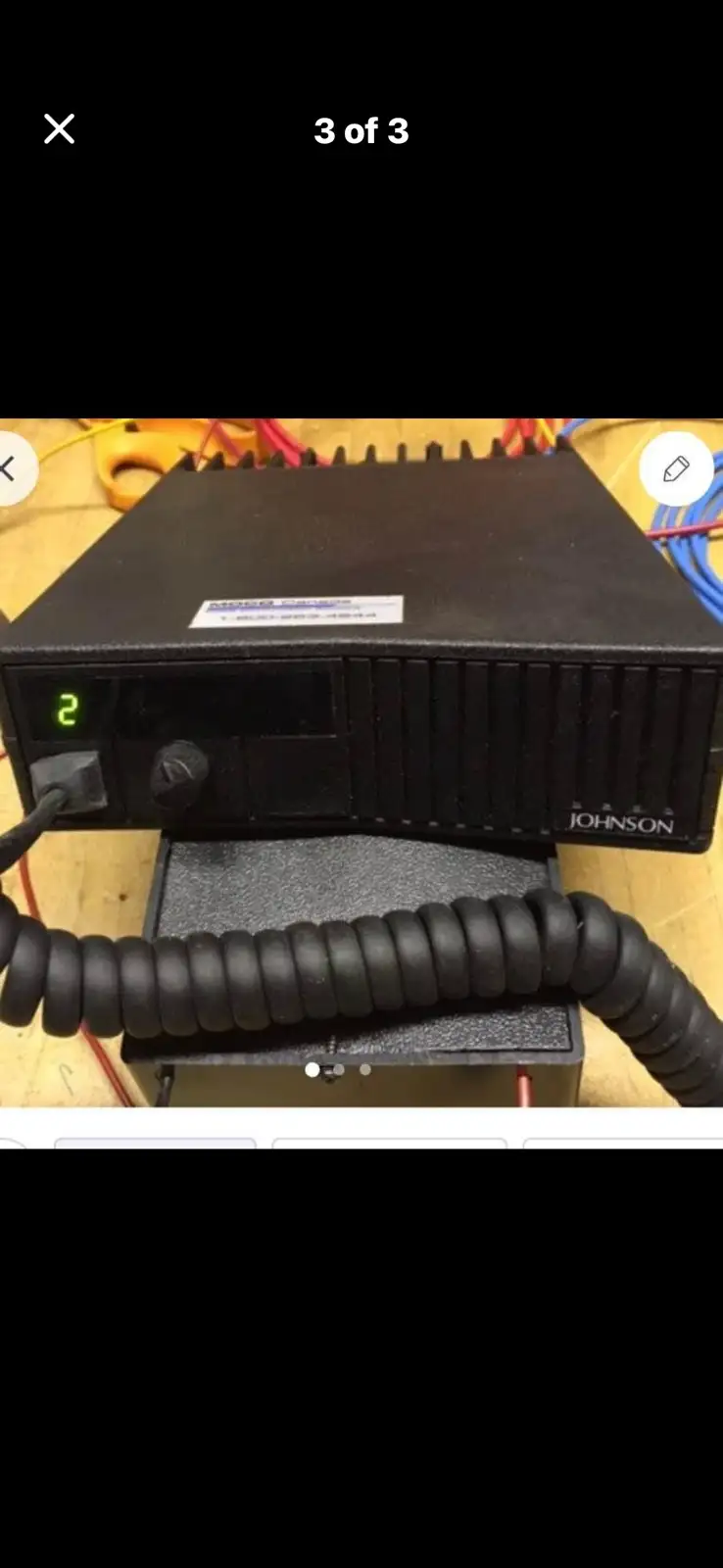

Vintage EF Johnson 8640 commercial mobile transceiver kit, excellent project piece for amateur radio operators. Includes the main unit, microphone, two heavy-duty mounting brackets, antenna with coaxial cable, and DC power leads.
